| Place of Origin | China |
| ब्रांड नाम | SUHANG |
| प्रमाणन | SGS.ISO.CE |
| Model Number | SH-RD |
Galvanized Steel Roof Deck Metal Panel Roll Forming Machine High Speed Production Line
Technical Parameter
|
Item NO |
|
UnitType |
RF-DF |
|
1 |
Steel Thickness |
mm |
0.7-1.5mm |
|
2 |
Forming Speed |
m/min |
0-12 |
|
3 |
Roller stands |
stand |
28 |
|
4 |
Roller Material |
|
high-grade 45# steel |
|
5 |
Shaft diameter |
|
90 |
|
6 |
Main Motor Power |
Kw |
18.5kw |
|
7 |
Hydraulic cutting Power |
Kw |
7.5 |
|
8 |
Hydraulic pressure |
Mpa |
12 |
|
9 |
Power Supply |
|
380V, 50HZ,3 phase |
|
10 |
Tolerance |
mm |
1.5 |
|
11 |
Material of cutting |
|
Cr12 |
|
12 |
Control system |
|
PLC with touch screen |
Main Components
|
No |
Name |
quantity |
|
1 |
5 ton passive de-coiler |
1 set |
|
2 |
Main roll forming machine |
1 set |
|
3 |
Control box |
1 unit |
|
4 |
Hydraulic station |
1 unit |
|
5 |
Out tables |
2 units |
Working Flow of Roll Forming Machine
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
Profile of product

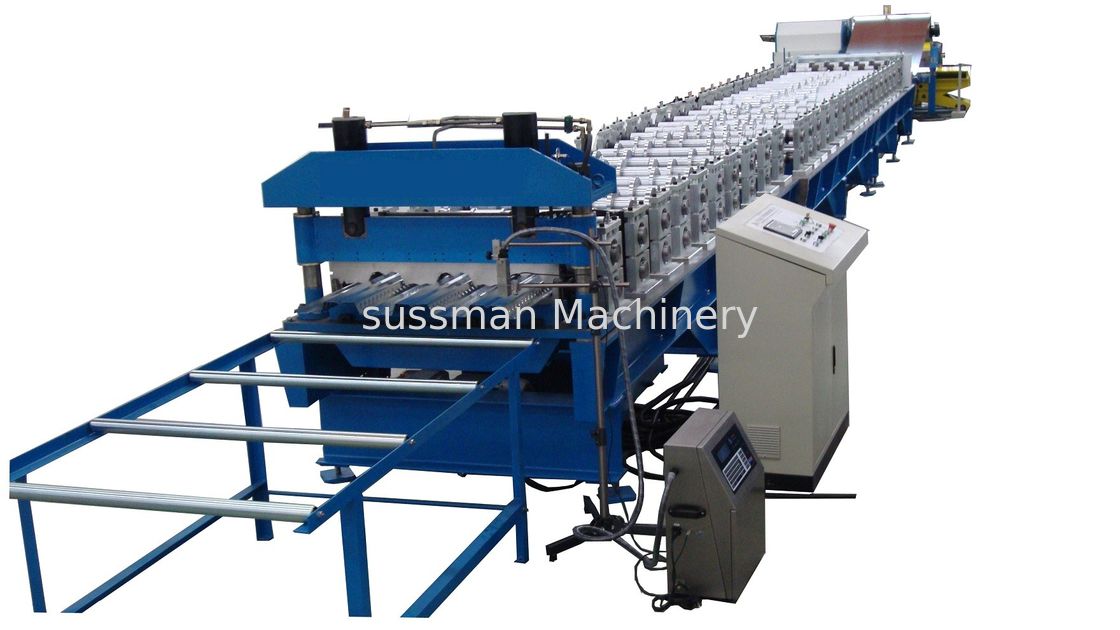

Machine Photo
Customer Visiting
Our Exhibition
Loading pictures
